Terna FANTINI

Block Sawing Machine

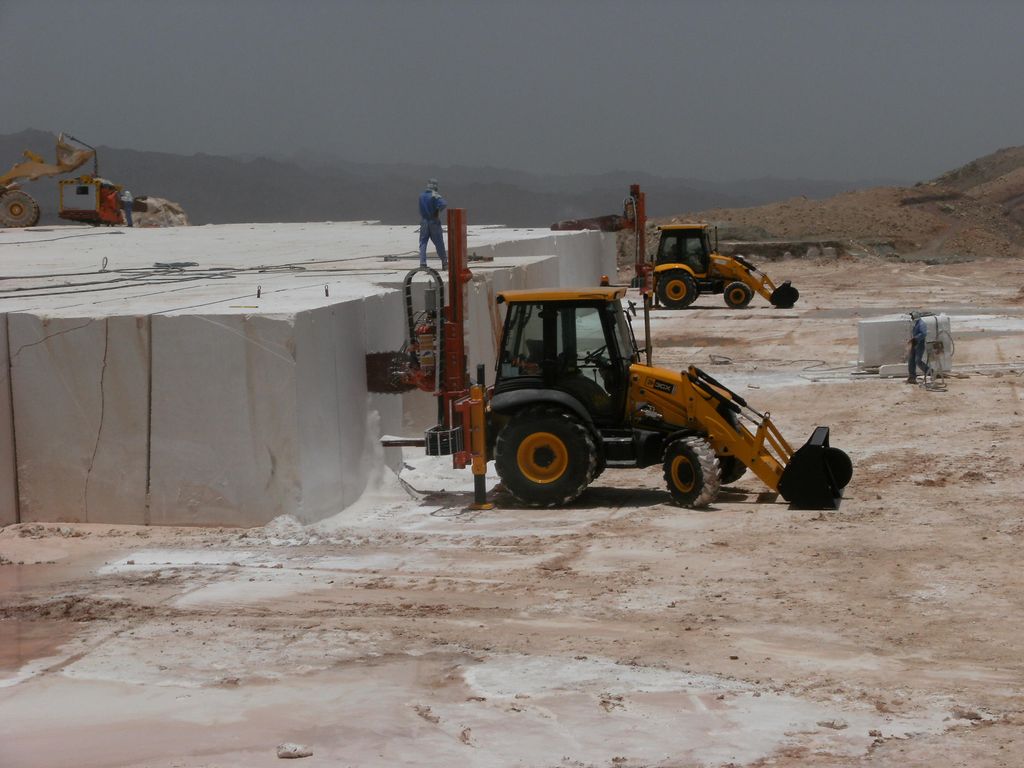

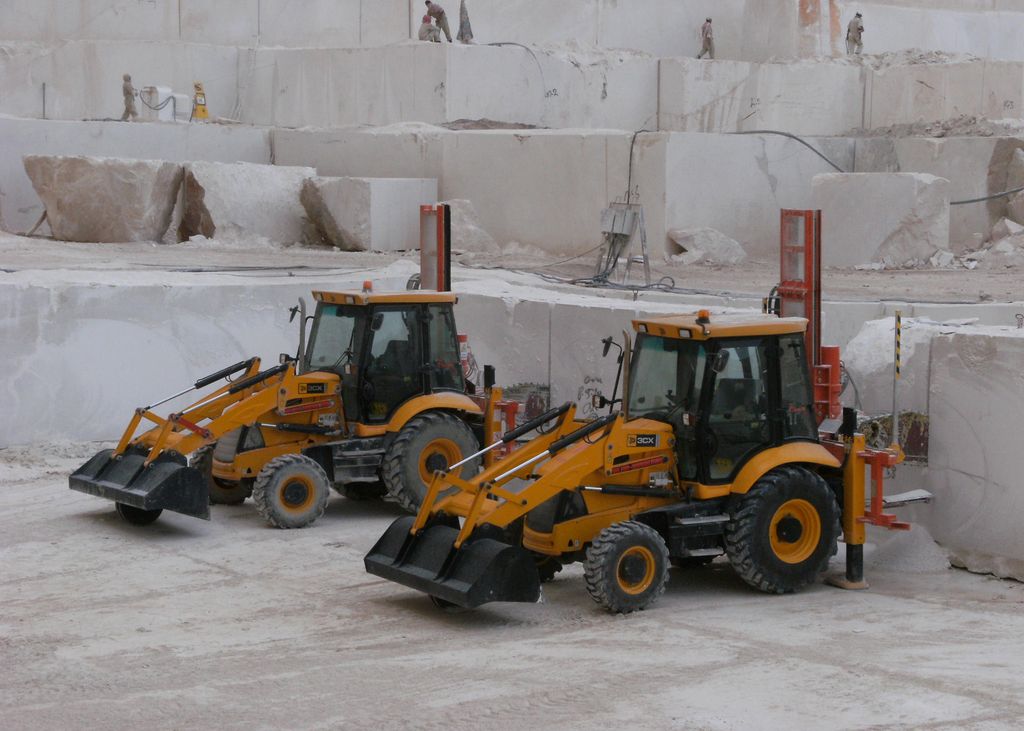

The Terni Fantini is a machine made from a rubber tired JCB vehicle and a group of Fantini cutters. The extreme versatility of its’ rubberised four-wheel drive allows you to reach cutting areas quickly, whether they are: blocks spread over the quarry, banks on the ground or even cuts executed directly at the front of the bank.

As the machine travels to the block and not the other way round, the Fantini back allows you to save time and money. The operator works from a cabin, protected from atmospheric agents, without needing auxiliary staff, and the cuts are executed dry. The cutting capacity standard is 3.4 metres (length) and 3.0 metres (height).

macchina segatrice
macchina segatrice serie 20.90

Techncial Specifications


  • Installed power: 68.6 Kw
  • Tractor weight: about 7,000 Kg
  • Cutting unit weight: 2,000 Kg
  • Arm rotation: 90°
  • Useful for cuts of up to 3.9 metres
  • Chain speed: 0-0.7 m/sec
  • Thickness of cut: 27 mm – 38 mm
  • Tractor transit speed: 40 km/h

Technical characteristics may be subject to variations
