50.90

Bank Chain Saw Machine

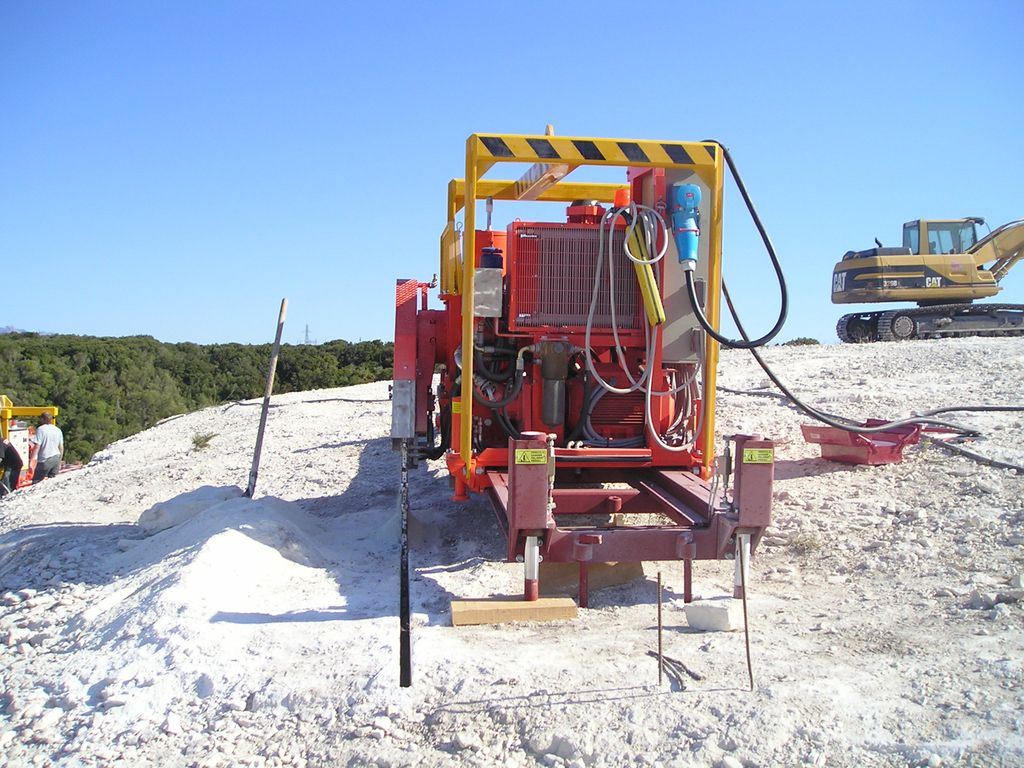

The Fantini 50.90 chain saw machine is designed for cutting medium soft stone, and cutting and squaring in quarries with sloped banks. It can be supplied with an arm with an effective cutting depth of up to 2.0 m.

The machine can perform horizontal and vertical cuts without the need for cooling water and is available in either the modular rail (P), or single rail (BU), version; in the latter configuration, the machine can be repositioned by moving it along a single rail, without the need for lifting equipment.

macchina segatrice
macchina segatrice serie 20.90

Technical Specifications


  • Installed power: 26.7 Kw
  • Weight: 3,500-3,900 Kg
  • Arm rotation: 360°
  • Chain speed: 0-0.7 m/sec
  • Cutting width: 38 mm
  • Effective cutting depth: 2.00 m max
  • Cutting speed: 0-25 cm/min

The technical specifications may be subject to change

Customer Service

In addition to the customer service hotline, Fantini technicians are also available to carry out diagnostics and ordinary maintenance operations on site.
