Bank Chain Saw Machine

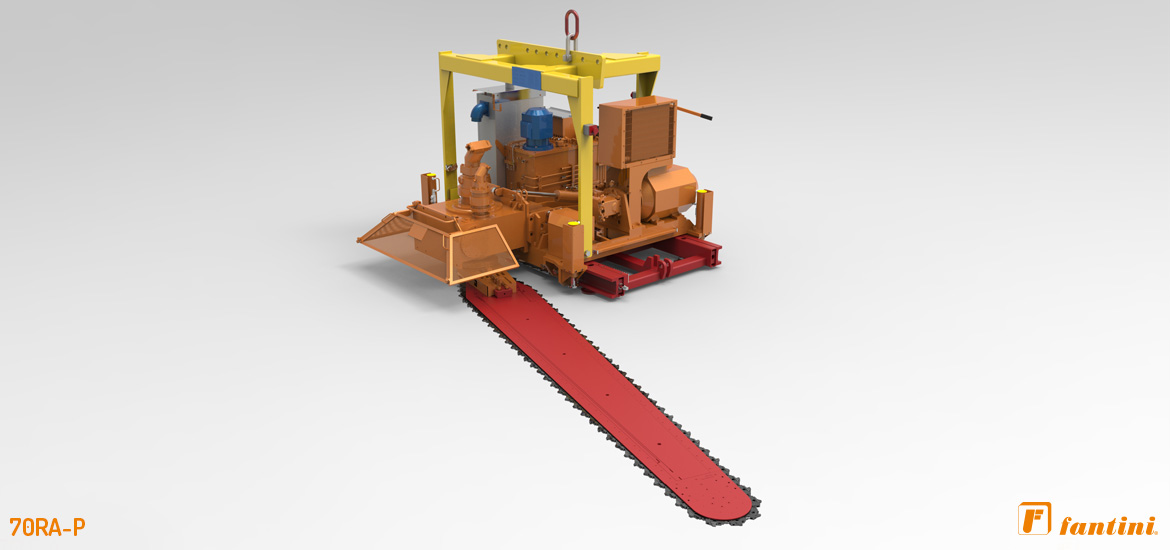

The 70RA/P chain saw machine is the most popular model in the FANTINI range as well as being the best selling machine of its type in the world. First manufactured in 1979, 70RA/P models can be found in all the most important natural stone extraction centres, and have come to represent the byword for quality and reliability.

It features a cutting capacity of up to 5.1 m and is even suitable for use with marble and other very hard stones. The machine is operated by a hydraulic system with variable capacity main pump driven by an electric motor, and can execute horizontal and vertical cuts without the need for water cooling. The electro-hydraulically operated controls guarantee power and speed in all operating conditions.

macchina segatrice
macchina segatrice serie 20.90

Technical Specifications

  • Installed power: 50 Kw
  • Weight: 6,200-6,700 Kg
  • Arm rotation: 360°
  • Chain speed: 0-0.7 mt/sec
  • Cutting width: 38 mm
  • Effective cutting depth: 510 m max
  • Cutting speed: 0-13 cm/min

The technical specifications may be subject to change

Warehouse and Spares

Accessories and spare parts for the chain saw machines are always available from our warehouse.
